AFQm-3WF-030M-480

Category:
DESCRIPTION

AFQm-3WF-030M-480, Active multifunctionfilter, 3 wires

Code: R7MM0F.

  •  System: 3 wires, 230…480 V
  •  Phase current: 30
  •  Peak current: 60
  •  Max.neutral current: 0
  •  Mounting: Wall-mounted

The wall-mounted AFQm multilevel active filters are the most complete solution for solving power quality problems in three-phase industrial, commercial or service installations caused by the presence of harmonics and the consumption of reactive power. These following characteristics and functions have been implemented:

  • Filtering capacity of 30 A, 60 A and 100 A
  • Small wall-mounted cabinet easy to install thanks to its small dimensions
  • Range for installations with 3 wires (3W model) or 4 wires (4W model)
  • Multi-range voltage and dual frequency (50/60 Hz)
  • Reduction of harmonic currents up to the fiftieth harmonic (2,500 Hz)
  • Selection of harmonic frequencies to be filtered for maximum filter effectiveness
  • Power factor correction both inductive and capacitive
  • Phase current balancing, improvement of consumption in neutral (4W model)

If higher filtering capabilities are required, up to 100 filters can be connected in parallel (the filters must all be of the same 3 or 4-wire model).

APPLICATIONS

They are an ideal solution for installations with a large amount of single-phase and three-phase loads generating harmonics, such as computers, UPS units, lights, lifting equipment, air-conditioning systems with variable speed drives, etc.
They can also be used in installations that require a good power quality for the purpose of increasing production efficiency and improve supply continuity in the system.

AC POWER SUPPLY
Consumption 650 W
Frequency 50 / 60 Hz (± 5 %)
Nominal voltage 208 … 480 V~ F-F (± 10 %)

MECHANICAL CHARACTERISTICS

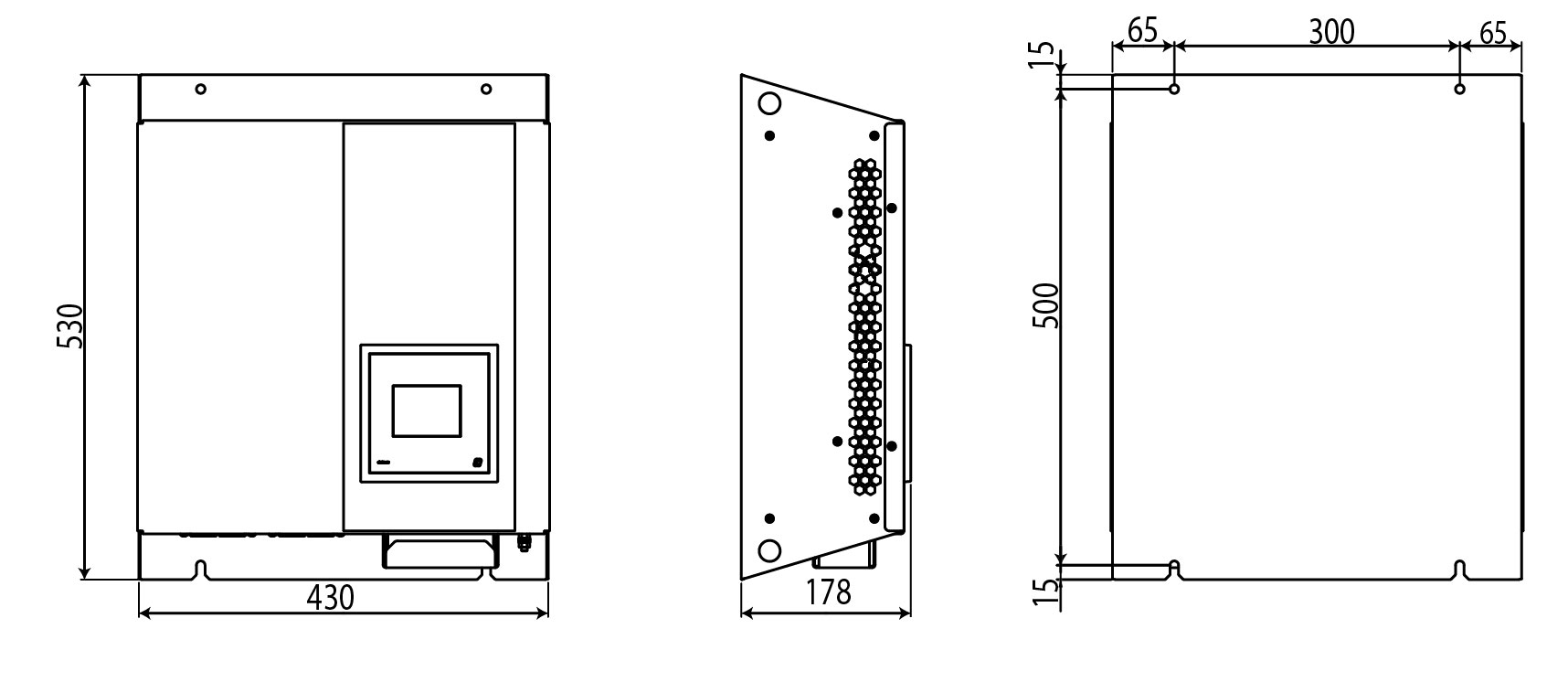

Size (mm) width x height x depth 430 x 530 x 178 (mm)
Envelope Galvanized steel 1,5 mm
Torque setting RS-485: 0,5 … 0,6 Nm / Current: 0,5 … 0,6 Nm / Grid and earth: 2,2 … 2,4 Nm
Communications cable cross-section RS-485: 2,5 mm2
Cable gauge at power supply terminals Grid: Ø 12 mm / Ground: Ø 16 mm
Cable gauge at current terminals 2,5 mm2
Connection type Network / Ground: M6 terminals, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45
Weight (kg) 21

ENVIRONMENTAL CHARACTERISTICS
Protection class IP 20 / IK10
Relative humidity (without condensation) 0 … 95 %
Storage temperature -20 … +50 ºC
Operating temperature -10 … +45 ºC

ELECTRICAL CHARACTERISTICS
Current crest factor 2:1
Maximum phase current 30 A (RMS)
Maximum neutral current 90 A (RMS)
Earthing system TN, TT

CURRENT MEASUREMENT CIRCUIT
Transformation ratio 5 … 5000 / 5A

COMMUNICATIONS
Fieldbus (ModBus) RS-485
Stop bits (ModBus) 1
Protocol Modbus RTU / Ethernet: TCP/IP, Modbus TCP
Speed 9600

STANDARDS
Electrical safety, Maximum height (m) 2000
Standards IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007,IEC 61439-1:2011

MEASUREMENT ACCURACY
Voltage harmonics (THD) 25 % (max)

FEATURES / PERFORMANCE
Phase compensation Selectable
Reactive power compensation (Kvar) Selectable
Filtering / Response time 2º … 50º harmonic (selectable) / < 100 µs
Parallel assembly/installation “Up to 100 units, with different gauges. Transformer connection only to the Master unit”
Priority scheduling Selectable

POWER SUPPLY OUTPUT
Power 22906 VA
